MINI Abyss
Couldn't load pickup availability

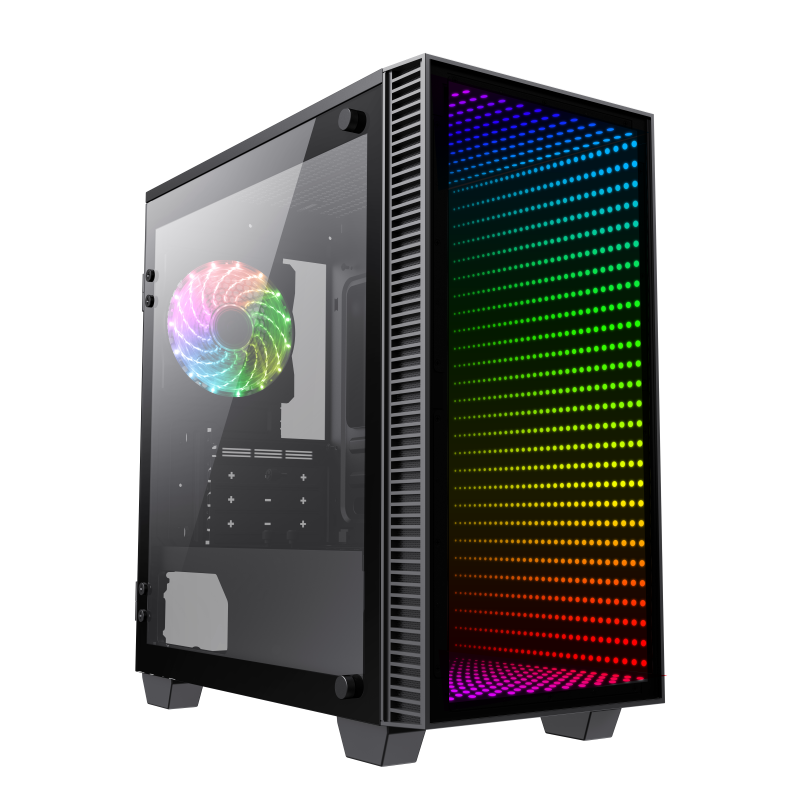

The GameMax Mini Abyss H608 new Micro ATX edition with an infinity mirror with Rainbow LED lighting(addressable) on the front and a tempered glass front panel and side panel. The most important adjustment feature is directly in the eye with an intelligent integrated infinity mirror at the front.
This optical illusion is created by a glass front, consisting of an outer one-way mirror, which partially reflects light on its inner side and is partially transparent to the exterior, and a fully reflecting mirror inside placed parallel behind it
| Form Factor (Midi, Micro, Mini ITX, Full) | Micro-ATX, Mini ITX | |
| Chassis | SPCC 0.6mm, Black painting interior | |
| PSU Form Factor | Bottom/ATX | |
| M/B Form Factor | M-ATX、ITX | |
| Front Panel | ABS,Tempered Glass | |
| Top Panel | Metal cover | |
| Branding | Box | GameMax |
| Unit | 1 | |
| Side Panel | Left | Tempered Glass |
| Right | Metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |
| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *2 | |
| I/O | Buttons | *4 |
| USB3.0(USB3.1 GEN1) Port(s) | *2 | |
| HD Audio Support | *1 | |
| Fan Controller | *1 PWM | |
| RGB Controller | *1 Rainbow Controller (ARGB) | |
| Controller max. fans | *5 | |
| RGB Controller max. LED strips | *2 | |
| Cooling Fan Support | Front | 3x120mm(Fan optional) |
| Top | 2x120mm(Fan optional) | |
| Rear | 1x120mm (Included) (FN-12Rainbow-M) | |
| Water Cooling Support (Radiator Size) |
Front | 120mm*1, 240mm*1 |
| Top | 120mm*1, 240mm*1 | |
| Rear | 120mm*1 | |
| Dust Cover | Bottom and top cover with dust filter | |
| Slots | *4 | |
| Carton & Logo | GAMEMAX | |
| Dimensions | Chassis | (L)350*(W)193*(H)390mm |
| Full Case (inc Fascia) | (L)403*(W)193*（H)415mm | |
| Carton | (L)493*(W)287*（H)487mm | |
| Net Weight (Kg) | 3.6 kgs | |
| Gross Weight (Kg) | 4.4 kgs | |
| VGA Card Length | 340mm | |
| CPU Cooler Height | 155mm | |
| Cable Management Depth | 19mm | |
| PSU | Included | *0 |
| Q'ty | 40HQ:960pcs 40GP:800pcs 20GP:400pcs | |
